CASE DETAILS

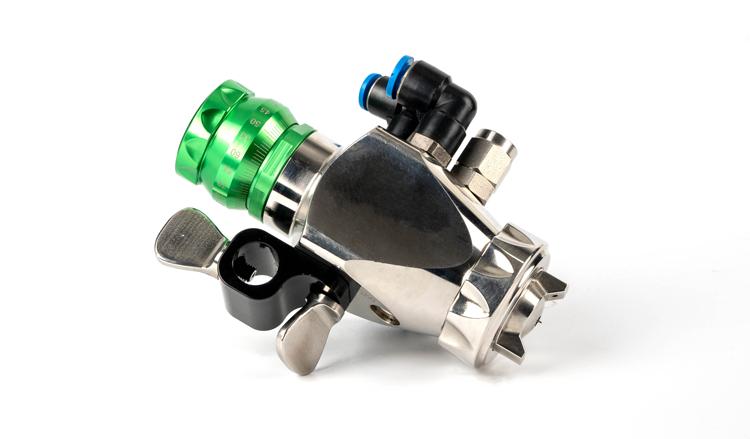

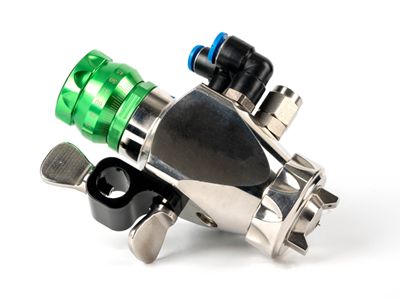

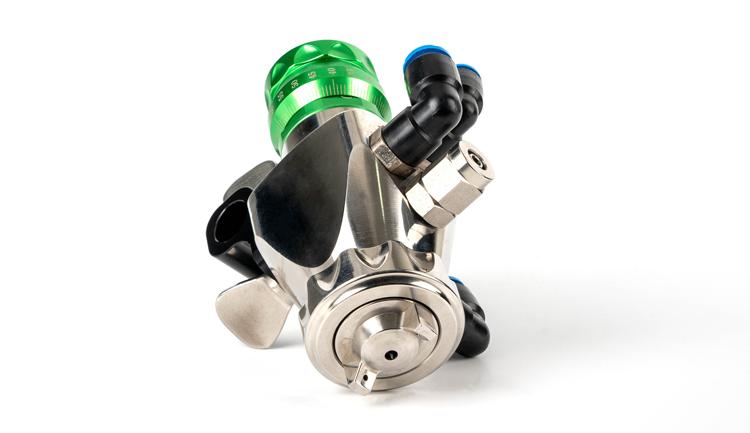

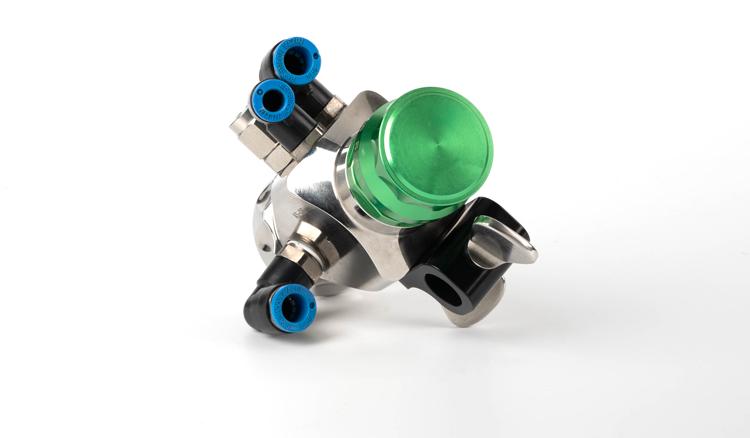

Name: 4-axis cnc machining nozzle internal parts
Industry/Classification: Smart Home
Machining method: CNC metal processing
Material used: stainless steel 316L
Maximum precision: 0.05MM Production lead time: 5 days
Product size: 8*6*8cm
Post-processing: black oxidation, green oxidation
Case Introduction
Currently 4-axis CNC machining centers have become the meat and potatoes of many processing companies, because this will be able to re-exist on the basis of the quality of the machining center to achieve a qualitative leap, and the cost is not too much higher than the 3-axis, the market is more receptive to the process. This case introduces the four-axis cnc machining gun internal parts samples.

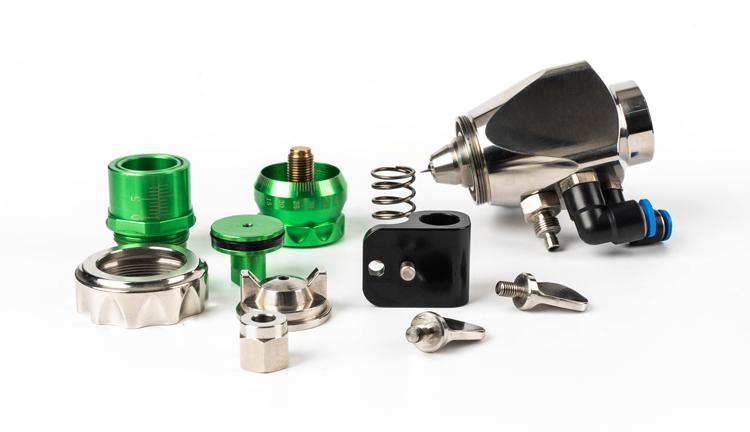

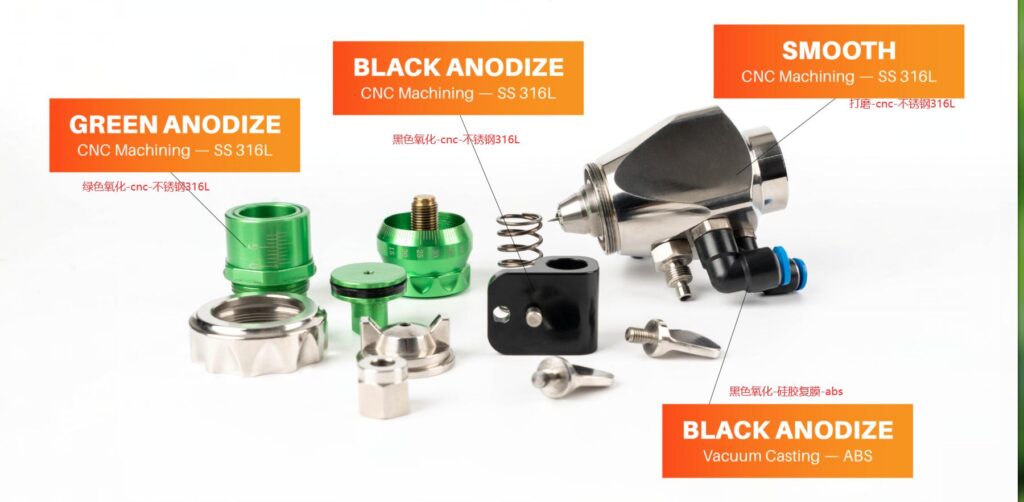

This sample also uses more processes, including: 4-axis CNC machining, silicone re-molding, black oxidation, green oxidation and other major processes. The raw materials used in the parts are mainly stainless steel 316L, a small amount of ABS material.
Four-axis machining in the manufacture of parts is a very commonly used process, the manufacture of sample parts to complete the processing of more complex workpieces become easier, the degree of completion is also higher. Specifically, the fourth axis of the machining center refers to the machining center CNC indexing head, which can complete the three-axis machining center can not be completed at one time machining tasks, it can be rotated to enable the product to achieve multi-faceted machining, greatly improving the processing efficiency, reducing the number of times of clamping. Shorten the production time, so many companies need to use four-axis machining centers to process parts.
What are the benefits of four-axis machining center?
1. The rotation angle can be processed simultaneously on multiple surfaces, improve the overall machining accuracy of the workpiece, and help to simplify the process, improve productivity and shorten production time.
2. Three axes that is, XYZ three linear moving coordinates, the fourth axis is generally a rotary axis, can make the tool – tool and the workpiece between the angular offset, that is, the tool axis and the surface of the workpiece normal into an angle. One can expand the scope of machining, two can make the cutting conditions better.
Machining centers to add the fourth axis of the benefits of the tool – tool processing plane is more extensive, and can reduce the repeated clamping of the workpiece to improve the overall machining accuracy of the workpiece, help to simplify the process, improve productivity.
